On site and workshop line boring
Line boring in Benalla
Benalla is around an hour and three quarters east of the workshop. Worn pins, oval bores and sloppy linkages get welded up and machined true where the machine sits, on cropping gear, grazing plant and trucks.
Mobile set-up
We come to the machine
Workshop
Fully set up at Wharparilla
Breakdowns
Callouts by arrangement
Benalla VIC
What we see around Benalla
Benalla is roughly an hour and three quarters east along the Midland Highway through Shepparton. Like the other longer runs, it works best when we know the full job before setting off, so the right bar, the right bushes and the right pins are all on the truck and it gets finished in the one visit.
Cropping and grazing country works in bursts. Sowing, then hay, then harvest, with everything expected to run flat out through each of them and sit quietly in between. The quiet weeks are the best time to get a pivot done and the time nobody thinks about it. A joint that was knocking at the end of harvest is a booked job in the off season and a breakdown in the middle of the next one.
Sitting on the Hume, there is a lot of freight through Benalla as well. Tipper body pivots, trailer hinge points and towing eyes wear the same way a machine pivot does, and they get the same treatment: weld the bore back up, machine it true and fit new bushes and pins.
~150km from the workshop
Around an hour and three quarters, east on the Midland Highway through Shepparton
What we get called to
Tractors and three point linkages, front end loaders, headers and chaser bins, hay and fodder gear, post drivers and grazing plant, plus tipper and trailer hinge points.
Local industries we work with
- Broadacre cropping
- Beef and sheep grazing
- Hay and fodder
- Transport and freight
What line boring actually does
Every pivot on a machine wears. Grease breaks down, dirt gets in, and the pin starts working the hole. What began as a round bore slowly goes oval, the pin loses its fit, and the play works its way through the whole linkage.

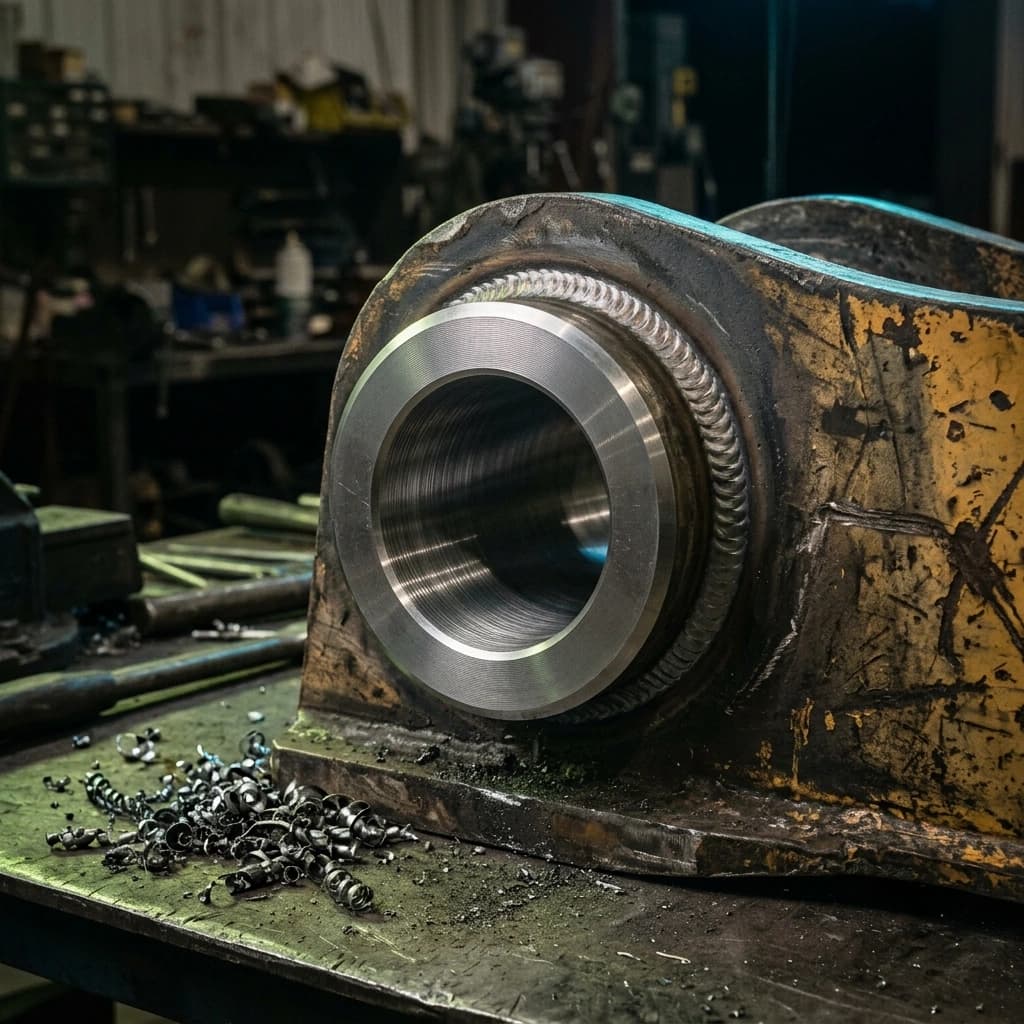

Line boring fixes that in place. A boring bar is set up through the worn hole and aligned to the original centreline, the bore is built back up with weld, then machined true to size so a standard bush and pin drops straight back in. The machine usually needs pulling down to get to the pivot. We can do that for you, or you can have it stripped and ready before we arrive.
Left too long, that play stops being a bore problem. It cracks weld seams, elongates the housing past repair and puts load through things that were never meant to carry it. Caught early, it is a day of work. Caught late, it is a new component.
The short version: if you can rock the attachment by hand and feel movement in the joint, the bore has worn and it is worth a look before it costs you a component.
Signs you need line boring
- Slop or knocking through the linkage under load
- Bucket or blade wandering off line
- Pin holes gone oval or egg-shaped
- Pins spinning or seizing in the bore
- Grease weeping straight back out of the joint
- Cracked or dished bush housings
Spotted one or more of these? Give Sean a call and describe what the machine is doing. You will get a straight answer on whether it needs boring now or can wait.
What we line bore
Twenty years across mining, agricultural, civil and factory work. If it pivots and it has worn, there is a good chance we have bored one before.
Excavators & dozers
- Boom and stick pivots
- Bucket ears and links
- Blade and C-frame pins
- Ripper and hitch bores
Loaders & trucks
- Loader linkage and bucket pins
- Articulation joints
- Tipper body hinges
- Suspension and spring eyes
Agricultural gear
- Front end loader arms
- Three point linkage
- Header and harvester pivots
- Trailer and hitch points
Fixed plant
- Crusher and screen pivots
- Conveyor bearing housings
- Press and baler linkages
- Gate and chute hinges
How a line boring job runs
No mystery and no runaround. Here is exactly what happens from the phone call to the machine going back to work.
You call, we talk it through
Tell us the machine and which pivots feel worn. We work out whether it is an on site job or one for the workshop, and what it will take.
We come to you
The mobile set-up carries the boring bar, welder and power. Farm, pit, yard or factory floor, the machine stays where it is.
Strip and measure
Pins and old bushes come out, the bore gets measured, and we confirm how far it has worn before anything is cut.
Weld and bore true
The bore is built back up with weld, then the bar is aligned to the original centreline and the hole is machined round and back to size.
New bushes and pins
Fresh bushes pressed in and pins fitted, so the joint sits tight the way it did when the machine was new.
Checked before we leave
Measured against spec, moved through its range and greased up. You see it working before we pack up.
Why owners keep calling us back
No fuss, no runaround. Just honest work that holds up and gets your machine back to earning.
Quality of workmanship
Every repair is done properly the first time. Bored true, welded clean, measured and checked before it leaves.
Care for safety and equipment
Your machine gets treated like ours. Safe practice on site and respect for the gear we work on.
Reliability
When we say we will be there, we are. Straight answers, on time, and a fix that holds up.
the trade
My promise to you
G'day, I'm Sean. After 20 years in the trade, I decided to open SOS Engineering. That is two decades across mining, agricultural, civil and factory work, so there is not much machinery I have not had my hands on.
When you call, you deal with me. Whether it is a breakdown that cannot wait or a scheduled service to catch the small stuff early, you will get a straight answer, honest work, and a fix that holds up.
That is the deal: I look after your gear like it is my own, and I keep you moving.
Great service, keeping you moving.
Sean O'Sullivan
Line boring around Benalla
Benalla is around an hour and three quarters east of the Echuca base, and the towns off the highway come with the same run. Violet Town, Baddaginnie, Goorambat, Devenish, Swanpool, Winton and Euroa are all inside normal travel. On a trip that length it pays to line up everything that needs doing, and we will work through it in the one visit.
Benalla
Regular run
~300km
Service radius
Line boring FAQs for Benalla
Yes. Benalla is around an hour and three quarters east of the Wharparilla workshop on the Midland Highway through Shepparton. It is a planned run rather than a drop everything one, so ring with the details and we will sort out a time that works and bring everything needed.
Line boring in other towns we cover
The mobile set-up runs right across northern Victoria and the southern New South Wales side. If your town is not listed, call anyway and we will sort it.
Got a machine down? Let's get you moving
Call Sean with a quick rundown of the job and the machine. Straight answer, no runaround, on site or in the shop.
